TALLAHASSEE, Fla. — At the exact intersection of empirical inquiry and aesthetic wonder lies a realm populated by geometric perfection, kaleidoscopic color play, and staggering architectural complexity. It is a universe normally sealed away from human eyes, restricted to the interior of quartz-windowed furnaces, specialized crucibles, and high-powered laboratory microscopes. Soon, however, this hidden microcosm will be pulled into the public sphere.
As part of the upcoming Florida State University (FSU) Discovery Days initiative, the FAMU-FSU College of Engineering is set to host a groundbreaking, free public event titled "Glittering Science." Scheduled for Wednesday, Oct. 21, from 6:30 to 8:00 p.m. at the Interdisciplinary Research and Commercialization Building (IRCB) located at 2001 Levy Ave., the event promises an immersive dive into the visual and technological poetry of materials science.

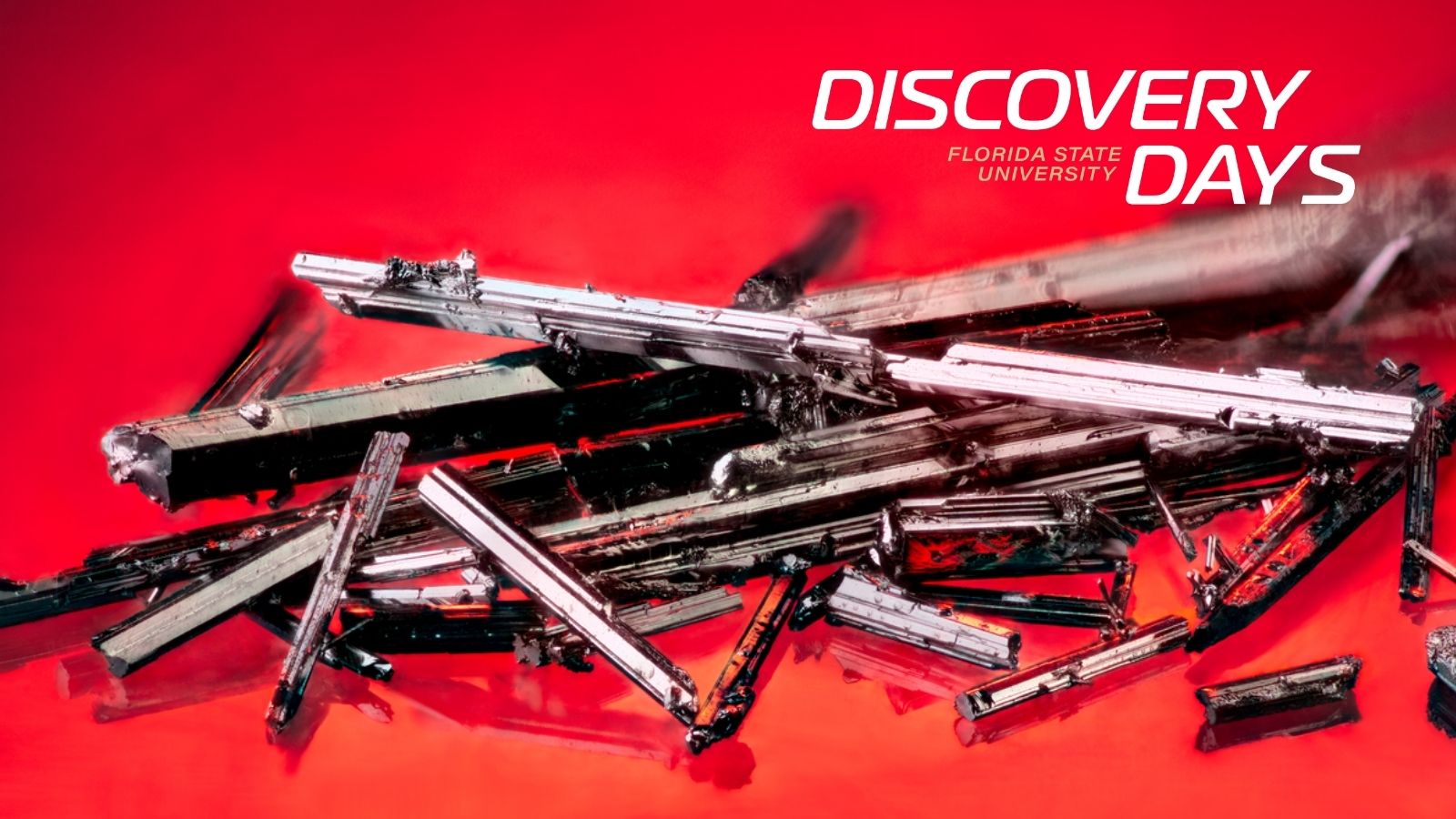

The exhibition is the product of an unlikely and fascinating collaboration between Dr. William Meier, an assistant professor of materials science and engineering at the FAMU-FSU College of Engineering, and Scott Holstein, the college’s veteran professional photographer. Together, Meier and Holstein have spent months unearthing the breathtaking artistic potential embedded within rigorous scientific research. The resulting showcase pairs genuine microscopic metal crystals grown in Meier’s advanced laboratory with stunning, larger-than-life macro photographs captured by Holstein. The evening will feature an expert lecture, an interactive reception, and an exclusive gallery walkthrough, offering attendees a rare glimpse into a world where advanced technology and fine art merge.
Executive Overview: Bridging Disciplines Through Creative Inquiry
The modern academic landscape often segregates the analytical sciences from the expressive arts, treating them as divergent modes of human thought. "Glittering Science" explicitly challenges this dichotomy. By framing metallurgical and solid-state research through the lens of macro photography, the collaboration demonstrates how the pursuit of fundamental scientific truth naturally generates profound aesthetic beauty.
At its core, the project examines tiny metallic crystals—structures measured in millimeters—synthesized to decode the behavior of electrons, magnetism, and superconductivity. These investigations are far from academic exercises; they form the bedrock of tomorrow’s technological breakthroughs, influencing everything from quantum computing to clean energy generation. Yet, while Meier’s primary motivations are strictly empirical, Holstein’s lens uncovers an unexpected layer of artistry. Utilizing advanced photographic techniques such as focus stacking at magnifications up to five times life-size, Holstein translates microscopic imperfections, brilliant metallic lusters, and intricate crystalline geometries into expansive, otherworldly landscapes.
This comprehensive overview explores the genesis of the "Glittering Science" exhibition, the meticulous methodologies behind crystal synthesis and macro photography, the profound technological implications of high-purity single crystals, and the collaborative philosophy driving this unique educational outreach initiative.
Detailed Chronology: From Crucible to Gallery Wall
The journey from a volatile, high-temperature chemical reaction inside an engineered laboratory to a pristine archival print hanging on a gallery wall is a testament to patience, precision, and cross-disciplinary vision.
The Genesis of the Crystals: Inside the Meier Lab
The narrative begins within the furnaces of the Meier Lab at the FAMU-FSU College of Engineering. Here, Dr. William Meier and his graduate students design and execute complex synthesis protocols to grow high-purity single crystals. Working primarily with metal alloys—such as gold aluminides and scandium-nickel-germanium compounds—the researchers manipulate thermal gradients, chemical fluxes, and atmospheric conditions to encourage atoms to arrange themselves into orderly, repeating three-dimensional lattices.
Growing these crystals is an exercise in controlled variables and calculated patience. The process often requires heating raw elemental components to extreme temperatures inside sealed quartz ampoules or specialized crucibles, followed by carefully controlled cooling cycles that can span days or even weeks. As the melt solidifies, the atoms lock into their preferred energetic configurations, resulting in the faceted, geometric forms characteristic of single crystals.

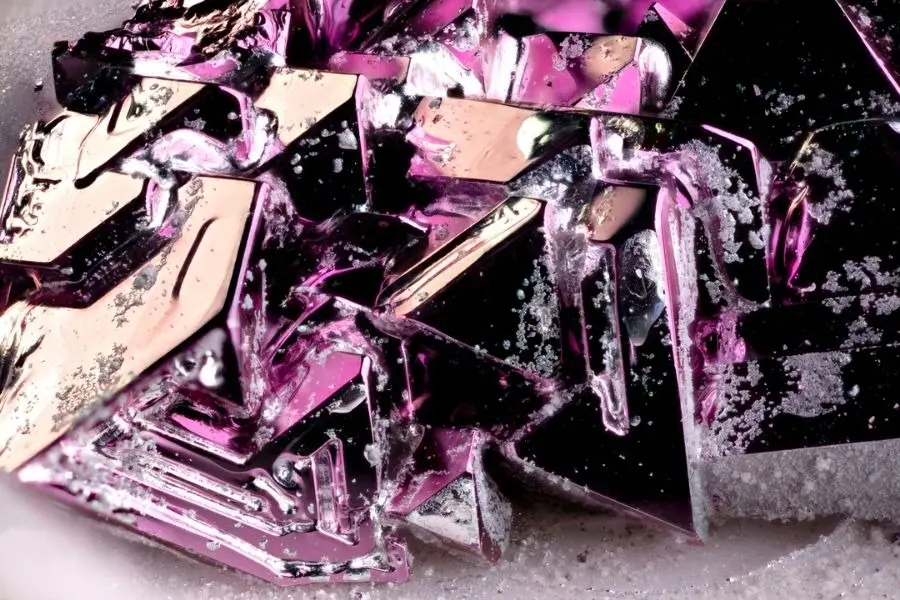

However, science rarely unfolds with absolute predictability. According to Meier, the most visually arresting samples are frequently the ones that refuse to adhere to initial experimental models. Unanticipated thermal fluctuations, minor compositional imbalances, or unexpected impurity interactions can yield asymmetrical growth patterns, iridescent oxidation layers, and dramatic topographical shifts. What a materials scientist might initially log as a processing anomaly, Holstein’s camera elevates into a masterpiece of natural abstract art.

The Photographic Metamorphosis: Capturing the "Secret World"
Once a crystal is harvested from the lab, it enters the photographic domain of Scott Holstein. To the naked eye, many of these metallic samples appear as unremarkable, dull grey or subtly metallic flecks, barely distinguishable from ordinary industrial debris. Revealing their hidden majesty requires specialized optical equipment and meticulous technique.
Working with a macro lens capable of achieving a 5-to-1 (5x) magnification ratio, Holstein peers into a microscopic dimension where standard photographic rules cease to apply. At such extreme close-up ranges, the depth of field—the zone of acceptable sharpness within a photograph—shrinks to a microscopic sliver, often measuring only a fraction of a millimeter thick. Attempting to capture an entire three-dimensional crystal in sharp focus with a single exposure is physically impossible; either the front facet is crisp while the rest blurs into abstraction, or the composition is lost entirely.
To overcome this optical barrier, Holstein employs focus stacking, a computationally intensive process. By mounting the camera on a high-precision motorized rail, he captures dozens—sometimes hundreds—of sequential photographs of the same crystal, each taken at a microscopically shifted focal plane. Specialised software then analyzes these individual frames, extracts the sharpest pixels from each image, and seamlessly blends them into a single, master composite photograph. The result is an image where every ridge, cleavage plane, facet, and color gradient is rendered in razor-sharp, breathtaking detail, exposing alien landscapes of gold, purple, and steel-grey that exist entirely unnoticed in everyday life.
Supporting Context & Metrics: The Science of Crystals and Micro-Imaging
To fully appreciate the significance of the "Glittering Science" exhibition, one must understand both the metallurgical importance of the objects on display and the technological sophistication required to image them.
Why Single Crystals Matter
In materials science, the internal structure of a solid dictates its macroscopic properties. Materials generally fall into two categories: amorphous (where atoms are arranged in a random, disordered fashion, much like glass) and crystalline (where atoms form periodic, repeating lattices).
While polycrystalline materials—composed of many small crystal grains fused together—are common in everyday engineering, researchers frequently rely on large, high-purity single crystals for fundamental studies. In a single crystal, the atomic lattice extends uninterrupted throughout the entire volume of the sample. This structural uniformity allows physicists and materials engineers to measure anisotropic properties: how electrical conductivity, thermal expansion, optical refraction, and magnetic susceptibility change depending on the direction along which the measurements are taken.
These directional measurements provide invaluable clues regarding the quantum-mechanical behavior of electrons within solids. By understanding how electrons navigate these pristine atomic landscapes, researchers can reverse-engineer materials with tailored electronic structures.
Applications in Advanced Technologies
The fundamental research conducted using crystals grown in labs like Meier’s directly feeds into the development of next-generation technologies:
- Microchips and Semiconductors: High-purity crystalline substrates serve as the foundational canvases upon which modern microprocessors and integrated circuits are built.
- Lasers and Optoelectronics: Specific crystalline hosts, often doped with rare-earth ions, are essential for generating coherent, high-intensity light beams used in industrial manufacturing, telecommunications, and medical surgery.
- Quantum Sensors: Advanced crystalline materials exhibiting unique electronic states are vital for the development of ultra-sensitive magnetometers and quantum information processing hardware.
- Fusion Reactor Components: Materials designed to withstand extreme thermal and radiative stress—often tested through single-crystal analysis—are crucial for realizing sustainable nuclear fusion energy.
The Physics of Macro Photography and Focus Stacking
Holstein’s work relies on overcoming severe optical limitations dictated by the physics of light diffraction and lens geometry. At high magnification ratios ($>1:1$), the effective f-number (aperture) increases dramatically due to the bellows factor (the physical extension of the lens away from the sensor). This creates severe diffraction blurring if the aperture is closed down too far to increase depth of field.
To bypass this trade-off, focus stacking utilizes wide, optically optimal apertures to maximize resolution on a single plane, relying on computational algorithms to stitch the focal planes together. This bridge between traditional optical craft and digital processing mirrors the interdisciplinary nature of the exhibition itself.

Official Statements: Perspectives from the Creators
The collaborative spirit behind "Glittering Science" underscores a shared belief in the communicative power of visual media within academic research.
Dr. William Meier emphasizes that while the aesthetic qualities of the samples are undeniable, their primary function remains rooted in empirical inquiry.
"We grow crystals to support scientific experiments and to answer fundamental questions about materials," Dr. Meier explains. "By studying their behaviors, such as magnetism, superconductivity, and how they conduct electricity, we gain insight into the underlying physics and can design new materials to solve technological challenges. At the same time, it has been wonderful to see how Scott’s photography reframes our work. Some of the most beautiful crystals are those that don’t go as planned."
Scott Holstein reflects on the transformative experience of peering into the microscopic world through his viewfinder, noting how scale alters human perception.
"When I saw the crystals up close, through the lens, they looked like otherworldly landscapes," Holstein shares. "It took a macro lens that was able to magnify the crystal up to five times its actual size to see the details of this secret world. At 5-to-1 magnification, just a sliver of the crystal is sharp in a shot, so stacking is a must to capture the full scope of what is actually there."
Future Outlook: Inspiring the Next Generation of Scientists and Artists
As public engagement in science takes on new urgency in an era defined by rapid technological change, initiatives like "Glittering Science" offer a vital model for science communication. By moving research out of sterile academic journals and placing it directly into an accessible, visually compelling gallery format, FSU Discovery Days bridges the gap between the university and the broader community.
The event scheduled for Wednesday, Oct. 21, at the Interdisciplinary Research and Commercialization Building is expected to draw students, educators, local artists, and technology enthusiasts alike. Organizers hope that by showcasing the inherent beauty of scientific discovery, the exhibition will spark curiosity in younger audiences, encouraging them to pursue careers that merge analytical rigor with creative problem-solving.
Ultimately, "Glittering Science" reminds us that science and art are not opposing forces, but complementary languages used to decode the mysteries of the physical world. Whether viewed through the equations of a solid-state physicist or through the stacked focal planes of a macro photographer, the micro-crystals of the Meier Lab invite us to look closer, think deeper, and marvel at the hidden architecture of our universe.
Event Quick Facts
- What: "Glittering Science" Exhibition, Lecture, and Reception (Part of FSU Discovery Days)
- When: Wednesday, Oct. 21, 6:30 PM – 8:00 PM
- Where: Interdisciplinary Research and Commercialization Building (IRCB), 2001 Levy Ave., Tallahassee, Florida
- Cost: Free and open to the public
- Registration & Information: Visit the official event website.
